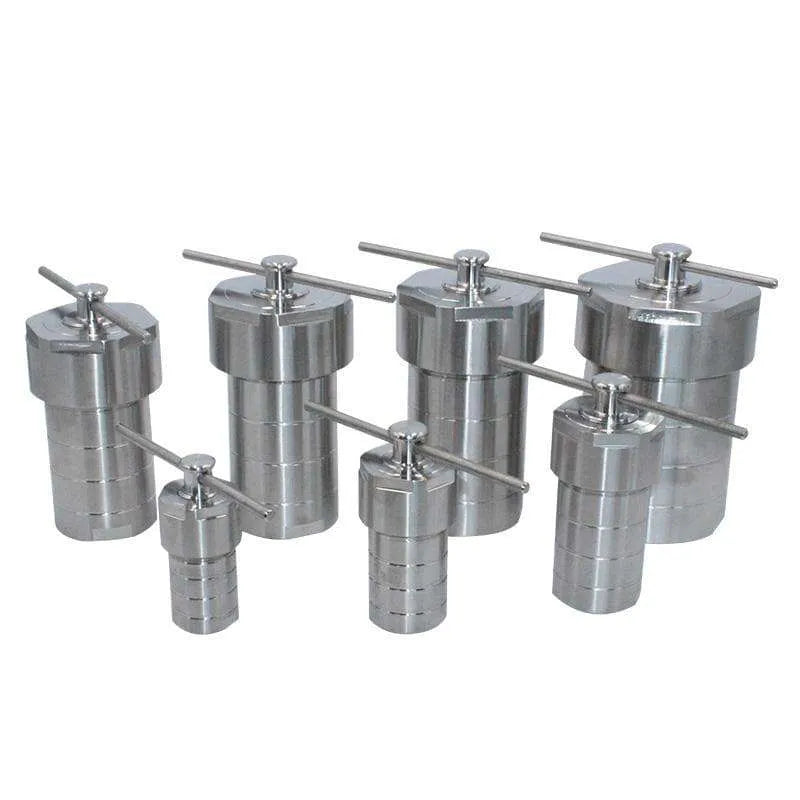

Hydrothermal Synthesis Reactor with PPL lined vessel, volumes 25-500 ml

Hydrothermal Synthesis Reactor – PPL-Lined, 25–500 ml

This hydrothermal synthesis reactor features a durable stainless steel shell and a PPL (polyphenylene-lined) inner vessel, offering excellent thermal stability and superior resistance to corrosive environments. Ideal for hydrothermal and solvothermal synthesis in advanced research applications across materials science, chemistry, and nanotechnology.

Key Features:

• Volume Options: 25 ml, 50 ml, 100 ml, 200 ml, 250 ml, 500 ml
• Outer Shell: High-quality 304 stainless steel (316SS available on request)
• Inner Liner: PPL (polyphenylene) for enhanced chemical and thermal resistance
• Maximum Operating Temperature: 280°C
• Safe Operating Limit: 260°C
• Working Pressure: ≤3 MPa (30 bar)
• Recommended Heating/Cooling Rate: ≤5°C/min
• Corrosion Resistance: Excellent performance in acidic, alkaline, and organic media
• Construction: Includes body, lid, liner, liner lid, top/bottom pads
• Customization: Volume and material customization available

Typical Applications:

• Hydrothermal synthesis of nanomaterials
• Solvothermal growth of single crystals
• High-pressure chemical reactions
• Organic/inorganic compound crystallization

⚠️ Usage & Safety Guidelines:

• Ensure tight and proper sealing before heating
• Do not exceed the recommended temperature or pressure limits
• Avoid rapid heating/cooling to preserve liner integrity
• Always operate under controlled conditions in a fume hood
