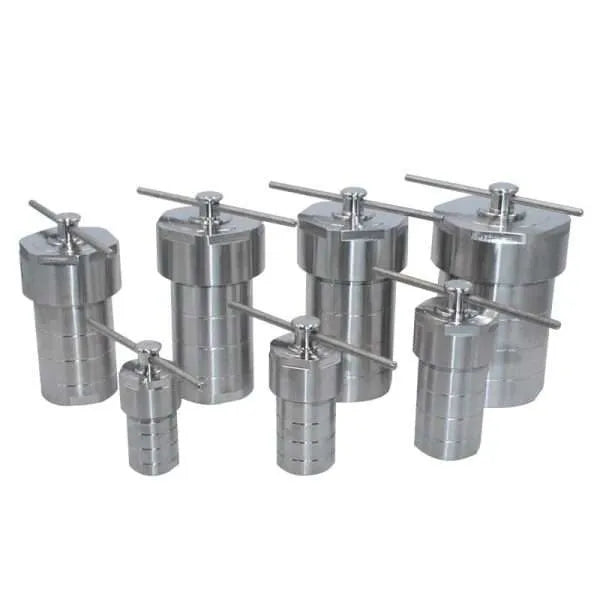

Hydrothermal Synthesis Reactor with PTFE Lined Vessel, Volumes 25-500 ml

Hydrothermal Synthesis Reactor – PTFE-Lined, 25–500 ml

This hydrothermal synthesis reactor features a durable stainless steel shell and a PTFE  inner vessel, offering excellent thermal stability and superior resistance to corrosive environments. Ideal for hydrothermal and solvothermal synthesis in advanced research applications across materials science, chemistry, and nanotechnology.

Key Features:

• Volume Options: 25 ml, 50 ml, 100 ml, 200 ml, 250 ml, 500 ml
• Outer Shell: High-quality 304 stainless steel (316SS available on request)
• Inner Liner: PTFE for enhanced chemical and thermal resistance
• Maximum Operating Temperature: 230°C
• Safe Operating Limit: 180-220°C
• Working Pressure: ≤3 MPa (30 bar)
• Recommended Heating/Cooling Rate: ≤5°C/min
• Corrosion Resistance: Excellent performance in acidic, alkaline, and organic media
• Construction: Includes body, lid, liner, liner lid, top/bottom pads
• Customization: Volume and material customization available

Typical Applications:

• Hydrothermal synthesis of nanomaterials
• Solvothermal growth of single crystals
• High-pressure chemical reactions
• Organic/inorganic compound crystallization

⚠️ Usage & Safety Guidelines:

• Ensure tight and proper sealing before heating
• Do not exceed the recommended temperature or pressure limits
• Avoid rapid heating/cooling to preserve liner integrity
• Always operate under controlled conditions in a fume hood
